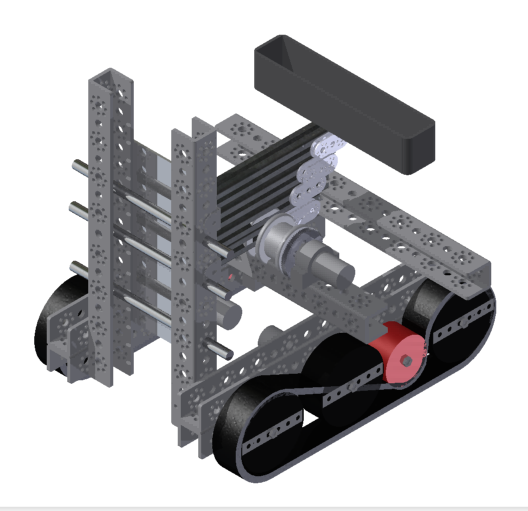

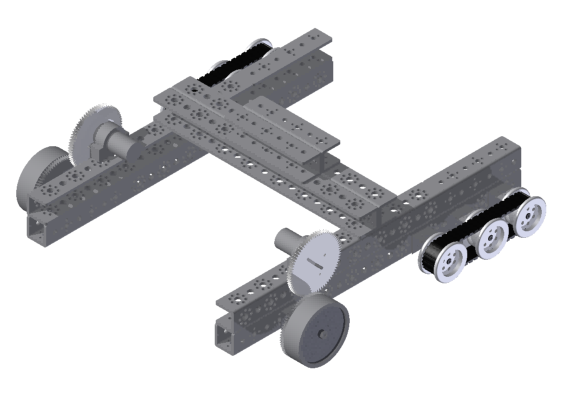

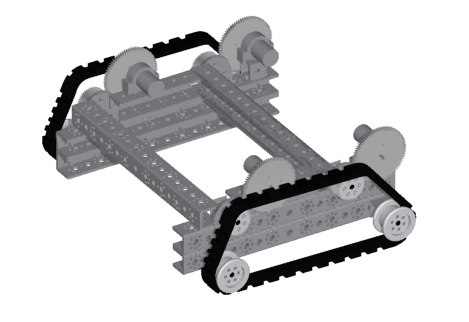

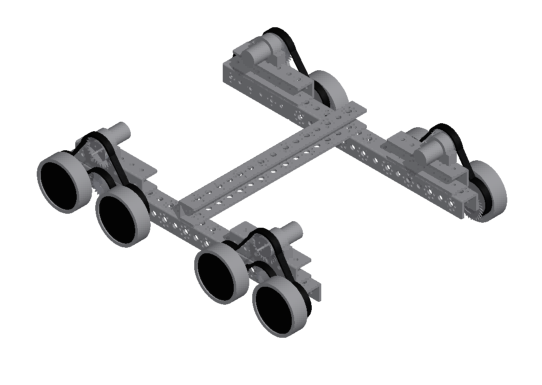

Robot Chassis in autodesk inventor

Various robot chassis designs were developed using Autodesk Inventor 2018, and iterated for the final design. Simulations and stress tests were run on each design to ensure technical specifications were met, and rendered as an assembly file. Parts which could not be manufactured or found from a manufacturer were then 3D printed using PLA filament.


Full scale telescope in catia v5

For a Computer Graphics course, the final semester project was to create a mechanical device of full-scale in Catia V5. All components of the telescope were created as separate part files consolidated into an assembly.

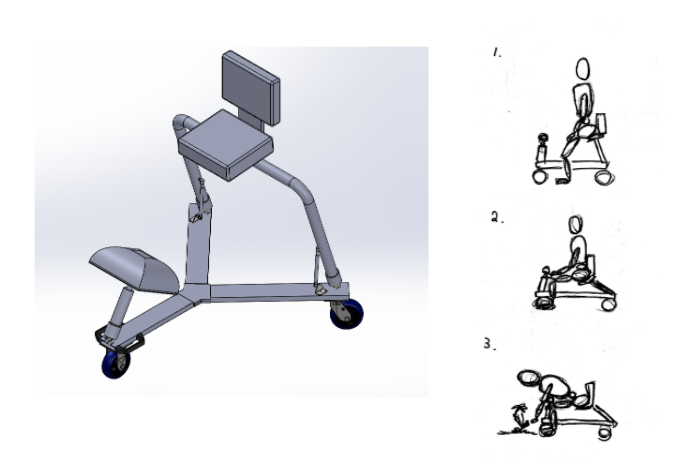

Assistive posture device

Iterated through an entire design process, the goal of this project was to establish a mid-fidelity prototype which would be able to fully support the weight and movement of its intended user.

Various phases of user testing, such as creating personas, a heuristic evaluation, and brainstorming methods were utilized to form various iterations of this design.
